Nubeam results from Franklin

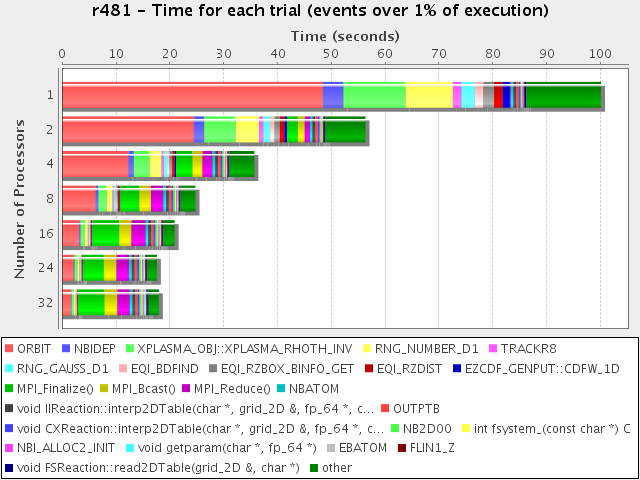

The following are charts generated from 1-32 proc runs on Franklin using TAU.

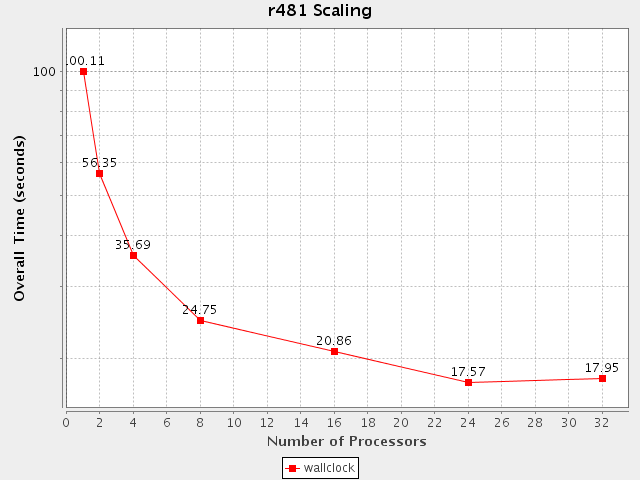

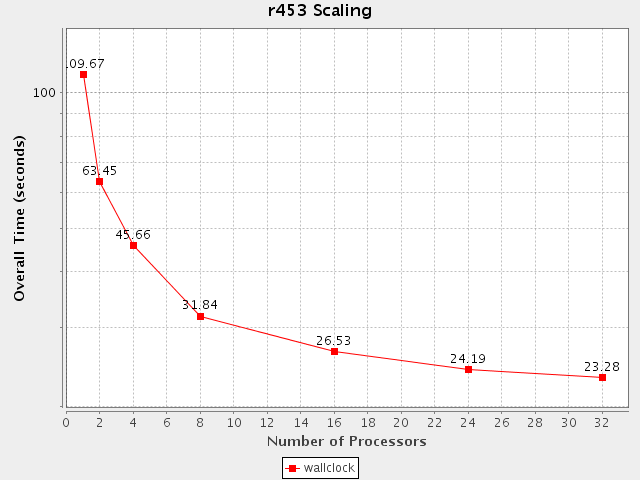

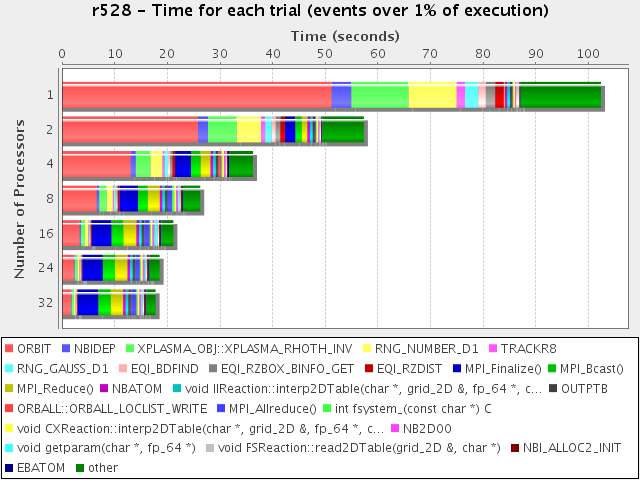

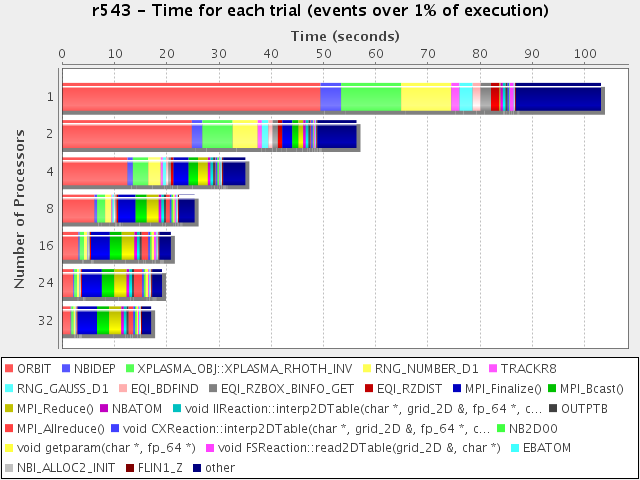

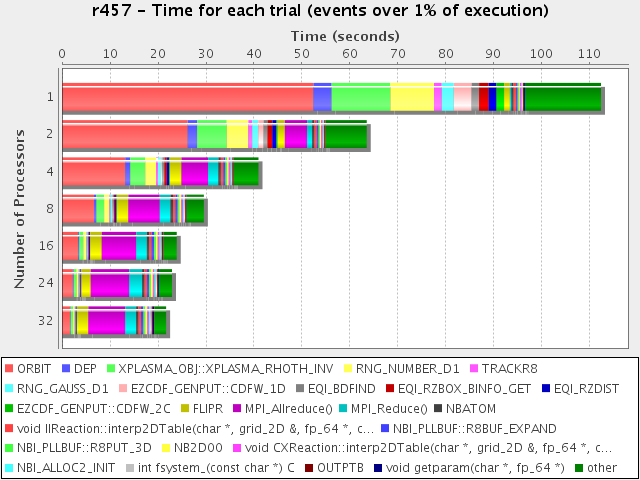

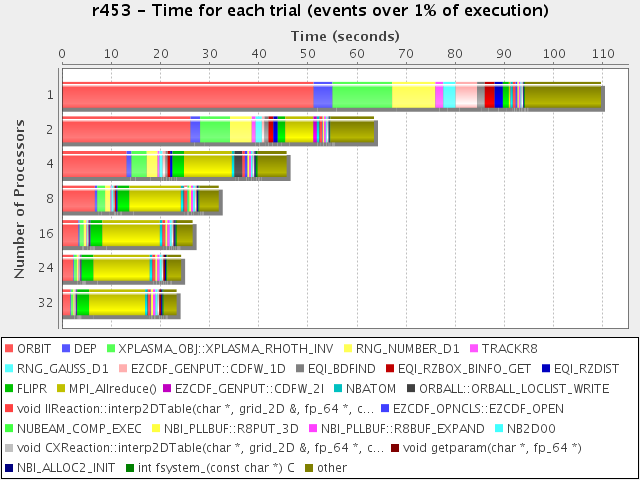

Scaling:

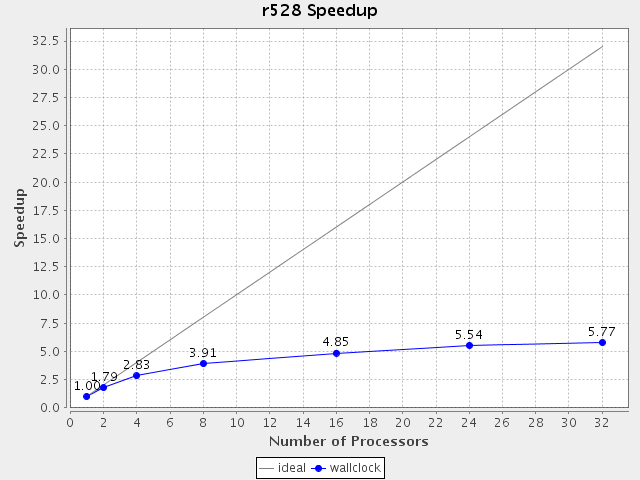

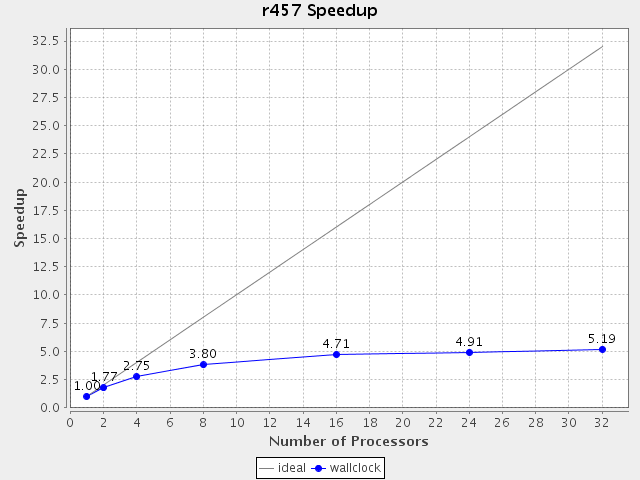

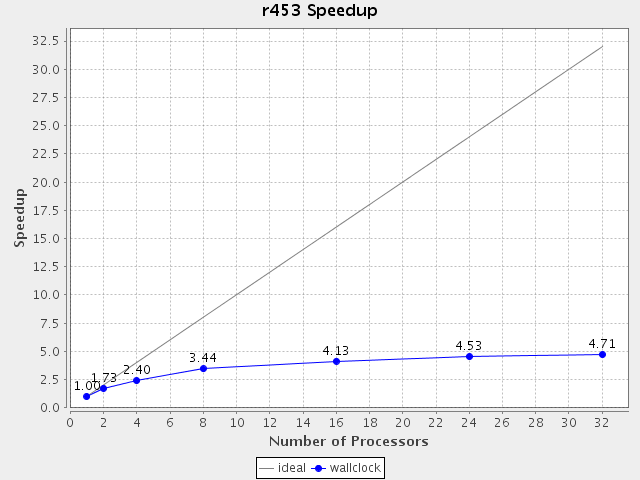

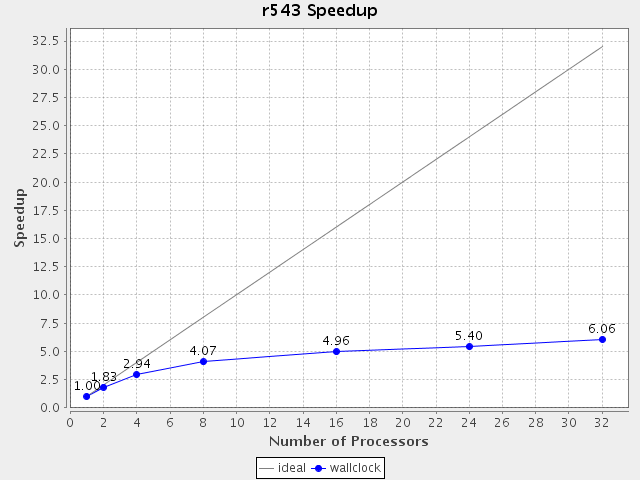

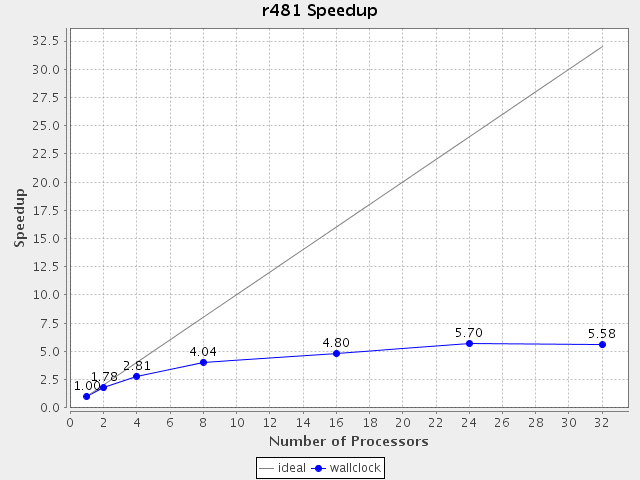

Speedup:

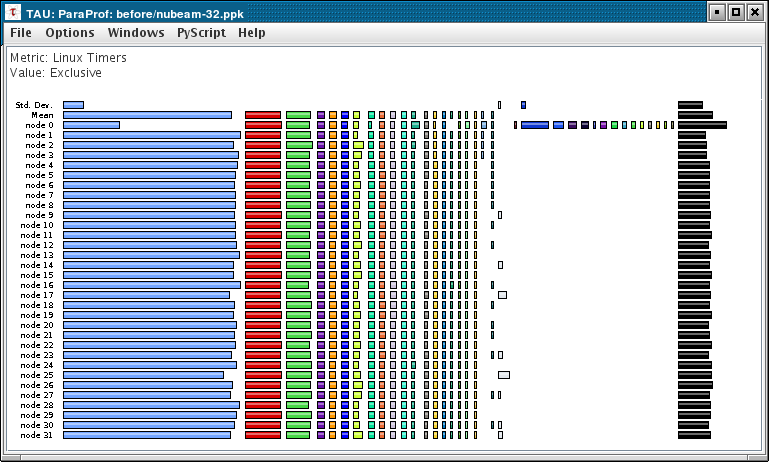

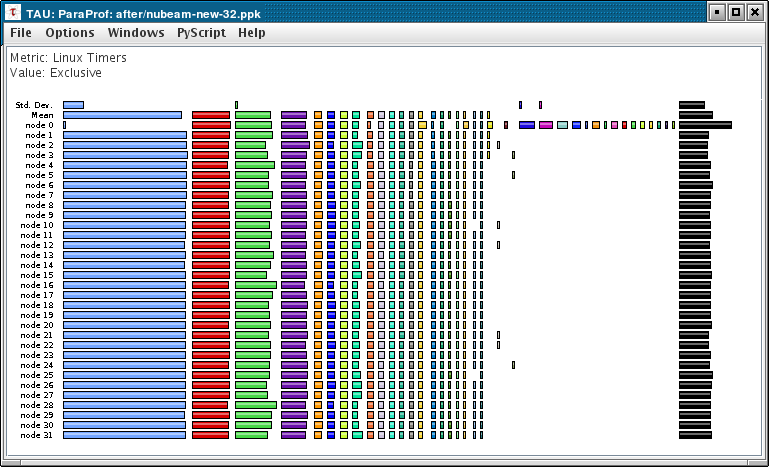

32 processor profiles, before and after:
Building TAU on Franklin
The following will build TAU and PDT (used for instrumentation) on Franklin:
#!/bin/bash
TOP=`pwd`
PDT=pdtoolkit-2009-02-05
TAU=tau2-2009-02-05
wget http://www.nic.uoregon.edu/~amorris/$PDT.tar.gz
wget http://www.nic.uoregon.edu/~amorris/$TAU.tar.gz
tar -xzf $PDT.tar.gz
tar -xzf $TAU.tar.gz
cd $TOP/$PDT
./configure
make install -j4
cd $TOP/$TAU
./configure -arch=craycnl -mpi -pdt=$TOP/$PDT -pdt_c++=g++ -useropt=-O3 -LINUXTIMERS
echo ""
echo "Please add $TOP/$TAU/x86_64/bin to your \$PATH"
echo "Please set \$TAU_MAKEFILE to $TOP/$TAU/include/Makefile"
echo ""
You may also use TAU built in amorris's directory. Simply set these variables:
export PATH=$PATH:/u0/a/amorris/tau2/craycnl/bin export TAU_MAKEFILE=/u0/a/amorris/tau2/include/Makefile export TAU_OPTIONS="-optVerbose -optTauSelectFile=/path/to/nubeam/tools/select.tau"
Building NUBEAM with TAU
One would normally configure NUBEAM on Franklin with something like this:
../configure --prefix=$SCRATCH/nubeam-parallel --enable-parallel FC=ftn F77=ftn CC=cc CXX=CC --with-netcdf-dir=/usr/common/usg/netcdf/3.6.2 --with-netlib_lite-dir=/project/projectdirs/facets/franklin/contrib/netlib_lite
To configure with TAU, use:
../configure --prefix=$SCRATCH/nubeam-parallel-tau --enable-parallel FC=tau_f90.sh F77=tau_f90.sh CC=tau_cc.sh CXX=tau_cxx.sh --with-netcdf-dir=/usr/common/usg/netcdf/3.6.2 --with-netlib_lite-dir=/project/projectdirs/facets/franklin/contrib/netlib_lite
