UEDGE Performance

Instrumentatation

To instrument UEDGE using TAU, we found it easiest to wrap the compiler scripts:

For example, gcc becomes a shell script:

#!/bin/bash

# unwrap
export PATH=`echo "$PATH" | sed -e "s@\`dirname $0\`@@g"`
tau_cc.sh "$@"

g++ becomes:

#!/bin/bash

# unwrap
export PATH=`echo "$PATH" | sed -e "s@\`dirname $0\`@@g"`
tau_cxx.sh "$@"

and gfortran:

#!/bin/bash

# unwrap
export PATH=`echo "$PATH" | sed -e "s@\`dirname $0\`@@g"`
tau_f90.sh "$@"

After creating these files, simply change your make invocation to:

PATH=<path/to/wrappers>:$PATH make install

UEDGE binaries will now be built with TAU.

Running with python wrapper

Whether UEDGE is built with or without TAU, you can still run it with the python profiling interface connected to TAU. Use the python wrapper:

#!/bin/bash

LOC=`dirname $0`

# unwrap
export PATH=`echo "$PATH" | sed -e "s@\`dirname $0\`@@g"`


if [ "x$TAU_OUTPUT" = "x" ]; then
    TAU_OUTPUT=$HOME/datarepo/uedge
fi

if [ "$1" = "-c" ] ; then
    python "$@"
else
    ARG=`echo $1 | sed -e s/.py//g -e s/-/_/g`
    cp $1 $ARG.py
    cat $LOC/taurun.manual.py.skel | sed -e "s/@PROGRAM@/$ARG/" > taurun.py
    export PROFILEDIR=$TAU_OUTPUT/$ARG
    mkdir -p $PROFILEDIR
    python taurun.py
fi

You can choose between taurun.manual.py.skel and taurun.auto.py.skel. The 'auto' script will instrument all python functions. However, we found that nearly all time is spent in non-python routines, so we found this unnecessary.

taurun.manual.py.skel:

#!/usr/bin/env python

import tau
import sys
import pytau

x = pytau.profileTimer("python")
print "taurunner(manual) begin"
pytau.start(x)
import @PROGRAM@
pytau.stop(x)
print "taurunner(manual) end"

taurun.auto.py.skel:

#!/usr/bin/env python

import tau
import sys

def main():
    print "taurunner begin"
    import @PROGRAM@
    print "taurunner end"

tau.run('main()')

Results

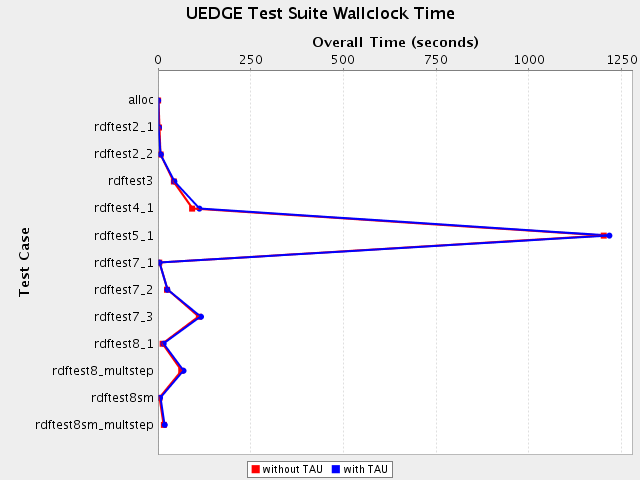

Running both the uninstrumented UEDGE and instrumented UEDGE for all of the make check test cases results in the following runtimes:

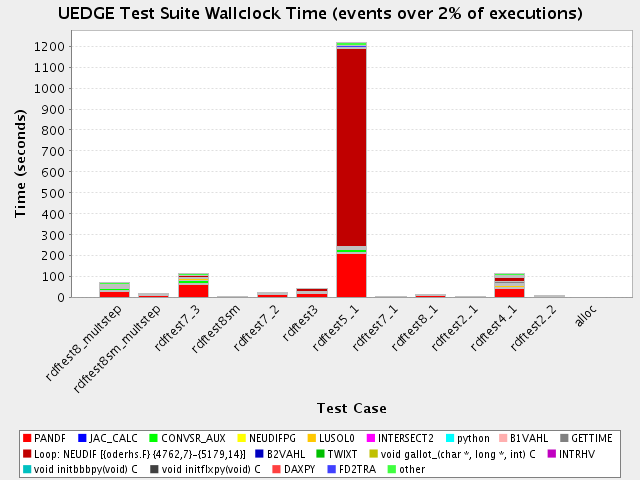

For the instrumented version, we can see the time split up among various native routines:

Now, individual profiles for some of the more time consuming test-cases:

rdftest3:

rdftest4_1:

rdftest5_1:

rdftest7_3:
